dotnet-workflow-kit

A Claude Code plugin for .NET teams that takes work from a ticket through planning, implementation, review and QA hand-off. It builds plan and review pages with enforced word budgets, so you can read the proposed work and the results before approving each.

One project profile sets your architecture, tests, tracker and QA workflow. Use the six skills, start, plan, implement, test, review and next, together or on their own, with or without a ticket tracker or the Artifact tool.

Install | Workflow | Skills | Progress bar | /goal | Branding | Profile reference | dotnet-claude-kit | Jev | Contributing

Install

Run in a terminal:

claude plugin marketplace add chrisjainsley/claude-dotnet-workflow-kit
claude plugin install dotnet-workflow-kit@dotnet-workflow-kit

Then run setup in Claude Code from your project:

/dotnet-workflow-kit:setup

Setup asks about your team and writes .claude/dotnet-workflow-kit.json. Commit that file to share the settings. Run setup again when your workflow changes.

The scripts require Python 3.11 or later. Pillow is optional; without it, the plan builder embeds full-size images instead of downscaling them.

For terminal setup from a clone of this repository:

python scripts/setup.py

Workflow

Start with a ticket ID, or a short slug when tracker is none:

/dotnet-workflow-kit:start 1234

Use the pipeline driver to continue, or wrap it in a goal so it keeps going until the next gate:

/dotnet-workflow-kit:next
/goal /next has stopped at a gate

The driver checks the branch, PR and saved state, then runs the earliest unfinished stage. It pauses for plan answers or approval, the review decision, and blockers. Invoking it authorizes commits, pushes, a draft PR and configured deployment labels before the review checkpoint. The kit never merges; a person approves every merge.

| Stage | Who | Result | |---|---|---| | 0. Start | Agent | Create and push a branch; assign and activate the item when a tracker is configured. | | 1. Plan | Agent, then you | Build the plan page; you answer the open questions or approve. | | 2. Implement | Agent | Implement the plan one layer per commit, then run the reviewer sweep, fix findings and verify. | | 3. Test | Agent | Run the suites, then the plan's scenarios in the configured environment; fix failures and rerun. | | 4. Review | Agent, then you | Present the final diff, findings and QA evidence on one page; you approve or send it back. | | 5. Pull request | Agent, then you | Resolve threads and get checks green. After approval, post the QA report, apply labels and mark the PR ready. You merge. |

Requesting changes returns the pipeline to implementation with your notes and per-finding fix or accept choices. The draft stays a draft until approval.

Skills

start

Use to start work from an ID, issue URL or untracked slug. It creates and pushes a branch from base_branch using branch_pattern. With a tracker, it assigns the item to user and moves it to the configured active state. It then renames the session when supported and hands off to plan.

plan

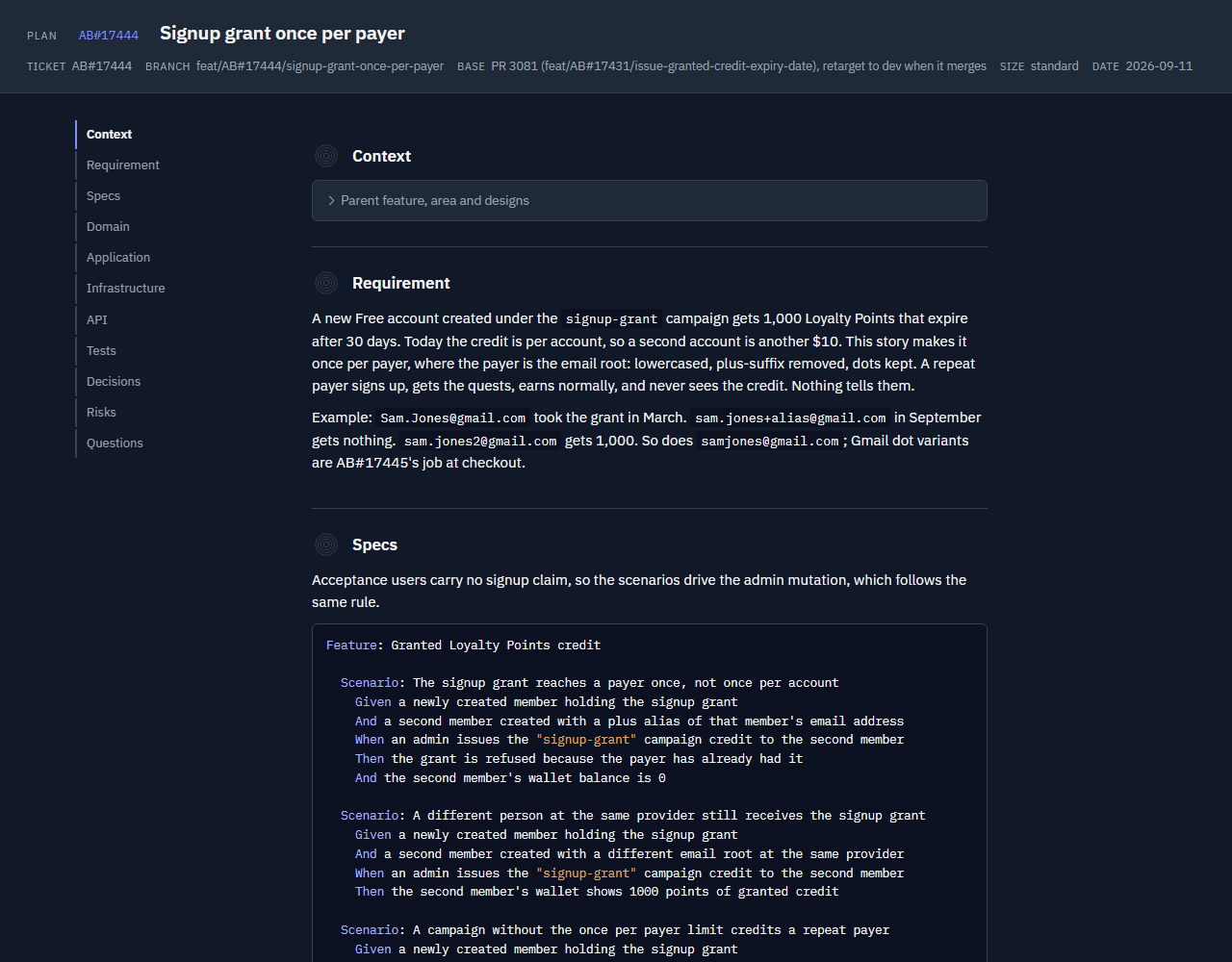

Use for an implementation plan. It reads the ticket and codebase, then writes plans/<id>-<slug>/plan.md and builds plan.html. Sections follow your architecture, with test scenarios, decisions, risks and open questions. A script checks section budgets before publication.

When stack.frontend is set and a ticket changes a screen that came with no design, the skill draws the screens first, with Claude Code's /design command or the Design canvas Artifact type, and embeds the artboards in a Designs section of the plan page next to a link to the editable canvas. Designs supplied by the tracker are used as they are and no canvas is made.

On an Artifact page, choose answers, pick Approve or Revise the plan and press Send answers. The page passes the choices to the session, which folds them into the plan; on Approve it goes straight on to Implement. If the page says to tell Claude "decided", the session could not be reached; say it in chat and the skill reads the stored choices.

implement

Use to build an approved plan. It walks the plan's layers in order, one commit each, tests first when testing.tdd is strict, then runs the reviewer sweep: read-only reviewers in parallel, cleanup and verification in sequence. The built-in reviewers are bug-hunt and conventions; the profile can enable companion reviewers and a Codex second opinion. Findings are fixed on the branch before anything is tested, and missing tools appear in the skipped list with a reason. This skill edits files.

test

Use to run the Test stage and write up what was tested. It runs the build and the suites, then the approved plan's scenarios in qa.environment, opening the draft PR and applying qa.deploy_label when that environment needs a deployment. It then writes the QA report, or testing notes for a QA team.

| Mode | Content | Posting | |---|---|---| | Report | Given/When/Then scenarios, Pass/Fail/Blocked results, evidence (API request and response pairs, query results folded under the step each proves; screenshots and videos in a visible grid per scenario), summary and untested criteria. | After approval, post according to qa.evidence. | | Notes | What changed, steps per persona, test data, edge cases, scope, environment and flags. | After approval, post for qa-team according to qa.evidence; otherwise print in chat. |

Reports cover acceptance runs against a real environment and manual checks. Unit and integration suites do not count as QA evidence. Notes come from the approved plan's Specs, or the diff when no plan exists. Select notes mode with:

/dotnet-workflow-kit:test notes

review

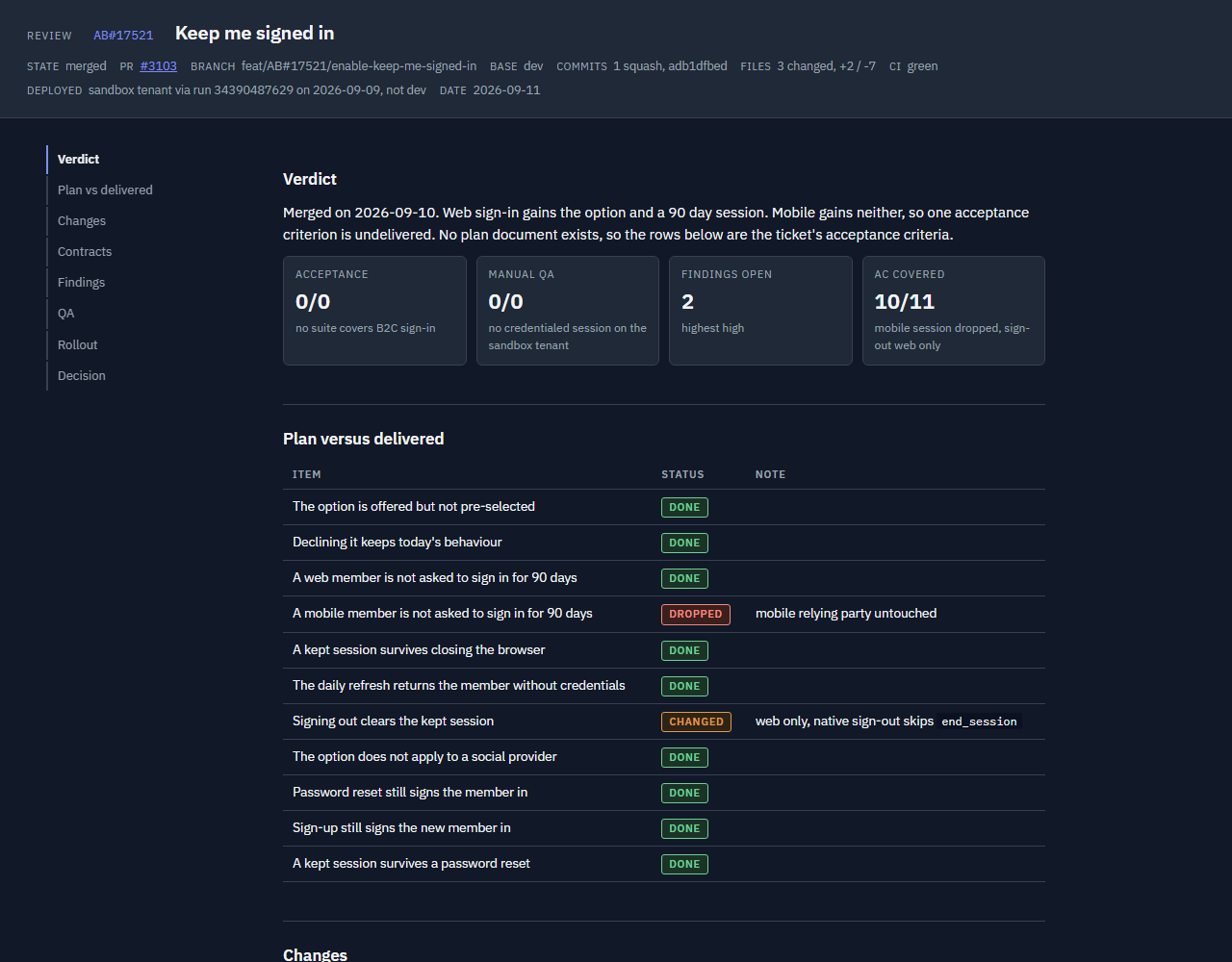

Use to review a branch or PR. It combines the approved plan, actual diff, sweep findings and QA evidence into review.md and review.html. When no sweep is fresh for the branch, it runs one first, so a branch nobody implemented in this session can still be reviewed.

The page includes verdict counts, plan versus delivered, a change diagram (click it to open full size), file links to full diffs, findings, the QA report and a rollout checklist. Choose Approve or Request changes and press Send decision. The page passes the decision to the session, which reads it with each open finding's fix or accept choice; on Approve it goes straight on to the pull request stage. Say "decided" in chat if the page asks.

next

Use to run the workflow from the current stage. It reads live signals alongside ~/.claude/dotnet-workflow-kit/pipeline/<slug>.json and updates stage completion. Live evidence overrides saved state; sweeps, test runs and reviews older than new commits must run again. State files written by 0.5.0 are migrated on first read.

To inspect progress without running a stage:

/next status

Renamed in 0.6.0

The skills now carry the names of the stages they run. Old names are not aliased; update any saved prompts or /goal text.

| Before | Now | |---|---| | start-ticket | start | | visual-plan | plan | | Execute stage inside next, plus mega-review | implement (the sweep lives at skills/review/sweep.md) | | qa-report, plus the QA stage inside next | test | | visual-review | review | | Draft PR, Resolve comments and Publish and hand off stages | next stage 5, Pull request |

Progress bar

The kit ships a Claude Code mod that draws a progress bar above the prompt, in the terminal and the desktop Code tab. It shows the work item on the session's own branch: the ticket id and a short title, a bar with a segment per stage, the current stage, the percentage and what Claude is doing right now. A stage waiting on you turns amber. The bar reads the pipeline state file that start, plan and next write.

Other items on branches of the same repository, touched in the last day, appear as a +N chip at the end of the bar; it turns amber when one of them is waiting on you. Pressing the chip, or /sessions, opens the Sessions pane: every item grouped as Needs you, Running and Done. Open items are cards with their stages, status and a Show button that names the branch whose session to open; the item you are viewing has a purple edge and one waiting on you an amber one. A plugin cannot switch the app to another session, so Show points you to it instead. Finished items take one line each, with a cross to hide one and Dismiss all to hide the lot. A toast when another item reaches a gate is off by default, because the app's own notifications already cover a session waiting on you; the last row of the pane turns it on. /progress hides or shows the bar, and the cross on a finished item hides it.

An item closes by itself when its pull request merges or closes, or when the worktree it was started in is gone, as it is once a worktree chat is archived; /progress done closes the current branch's item by hand. A closed item shows every stage done, and a day later its row goes and scripts/close_items.py deletes its state file. The PR check asks gh (or az for Azure Repos) every ten minutes.

The bar turns on by itself once the plugin is installed: mods load in every new session, with nothing to enable. It stays empty until a work item is started. An organisation's managed settings can block user-installed mods, for example with allowManagedModsOnly.

Running with /goal

/next runs stage after stage inside one turn, but nothing restarts it if the turn ends early. The kit's hooks wrap each half of the run in a goal for you:

| When | The hooks set | |---|---| | The plan is approved | /goal /next has reached the review checkpoint | | The review is approved | /goal complete /next: the pull request is ready |

Each goal is met by the message /next ends that half with, so it clears on its own instead of re-prompting while you decide. While /next is stopped on a blocker the hooks keep the goal quiet until you answer. Sending from the plan or review page wakes the session through Send to Claude, and an approval carries the run on by itself. When a page cannot reach the session, it says so; tell the session "decided" instead.

Without function hooks, set a goal yourself after each gate:

/goal /next has stopped at a gate

Tool permission prompts may still require input. When the pipeline reports a blocker, resolve it before continuing.

Without the Artifact tool

Set artifacts to false through setup when the Artifact tool is unavailable. The skills build the same HTML pages and give you local file paths to open.

Local forms cannot save answers or decisions. Reply in chat with question numbers and choices, or with "approve" or "changes" and your finding decisions. Rollout checklist ticks do not persist; track rollout outside the kit. See Running without the Artifact tool.

Branding

The plan and review pages use the Delivery Labs colours and carry an attribution footer linking there. Set branding to false through setup, or in the profile file, to render the neutral palette with no footer.

Profile reference

Setup writes .claude/dotnet-workflow-kit.json in the project. Profile resolution uses an explicit path first, then the project file, then the user file at ~/.claude/dotnet-workflow-kit.json, then defaults. Missing fields receive defaults.

Each row below names a field, including nested fields in dotted form. For example, testing.tdd lives inside the testing object. Empty strings appear as "".

| Field | Allowed values | Default | Purpose | |---|---|---|---| | schema | Integer | 1 | Profile schema version. | | user | Free text | "" | Assignee and name used in page prose. | | architecture | clean, vertical, ddd-clean, modular-monolith | "clean" | Plan section order and review rules. | | testing.tdd | strict, encouraged, none | "encouraged" | TDD expectation; strict means tests first during execution. | | testing.unit | xunit, nunit, mstest | "xunit" | Unit test framework. | | testing.integration | webapplicationfactory, testcontainers, none | "webapplicationfactory" | Integration test approach. | | testing.acceptance | reqnroll, specflow, none | "none" | Acceptance test runner; none keeps scenarios without a BDD runner. | | qa.owner | qa-team, self, none | "self" | Who tests and signs off. | | qa.evidence | work-item, pr-comment, none | "none" | Where approved QA reports go. | | qa.handoff_label | Free text | "" | PR label for QA hand-off. | | qa.deploy_label | Free text | "" | PR label to deploy to QA. | | qa.environment | Free text | "local" | Environment named in QA evidence. | | tracker | azure-boards, github-issues, jira, none | "none" | Ticket adapter; none uses your description. | | tracker_project | Free text | "" | Project or organization identifier for tracker calls. | | scm | github, azure-repos | "github" | PR and diff adapter. | | base_branch | Free text | "main" | Starting branch and fallback PR base; stacked work uses its parent. | | branch_pattern | Free text containing {slug}; supports {kind} and {id} | "{kind}/{id}-{slug}" | Branch naming template. | | branch_kinds.feature | Non-empty text | "feat" | Feature value for the kind token. | | branch_kinds.bug | Non-empty text | "bug" | Bug value for the kind token. | | tracker_states.active | Free text | "" | State when work starts; blank uses the adapter default. | | tracker_states.qa_ready | Free text | "" | QA hand-off state; blank uses the adapter default. | | artifacts | true, false | true | Publish Artifacts, or build local HTML and take answers in chat. | | branding | true, false | true | Delivery Labs colours and an attribution footer on the plan and review pages; false renders the neutral palette with no footer. | | stack.data | ef-core, dapper, cosmos, other | "ef-core" | Data access conventions. | | stack.api | minimal-api, controllers, graphql, grpc | "minimal-api" | API contract style. | | stack.messaging | masstransit, wolverine, service-bus, none | "none" | Messaging conventions. | | stack.errors | result, exceptions | "exceptions" | Error handling conventions. | | stack.local_run | aspire, docker, plain | "plain" | How to start the system for local QA. | | stack.frontend | none, blazor, razor, react, angular, vue, javascript | "none" | Whether the repo has a frontend and which kind; see the plan skill. | | reviewers | bug-hunt, conventions, kit, security-scan, convention-learner, code-review-workflow | ["bug-hunt", "conventions"] | Reviewer sweep passes; the two built-ins always run. | | pipeline.execute | Free text | "" | Execution command; blank implements the plan directly. | | pipeline.resolve_comments | Free text | "" | Comment-resolution command; blank uses the SCM adapter. | | pipeline.qa | Free text | "" | QA command; blank runs plan Specs manually per the QA adapter. | | pipeline.open_pr_in_browser | true, false | true | In Claude desktop, open a newly created PR in the Claude browser pane. Set false to only report the link. | | pipeline.auto_fix_pr | true, false | true | In Claude desktop, turn on CI auto-fix and comment handling for a newly created PR, so the session wakes on CI failures, conflicts and review comments. Set false to leave it off. | | optional.dotnet-claude-kit | true, false | false | Companion plugin availability. | | optional.codex | true, false | false | Enable the Codex second-opinion reviewer. | | optional.roslyn-mcp | true, false | false | Roslyn MCP availability for code-review-workflow. | | optional.jev | true, false | false | Jev availability: a TYPESAFE_API_KEY or a jev MCP server. Detected by setup. See Jev. | | jev.flag_at | Number from 0 to 1 | 0.75 | Probability at or above which a scored check becomes a finding at the rule's severity. | | jev.review_at | Number from 0 to 1, at most flag_at | 0.4 | Probability at or above which a scored check is listed as low with "confirm by reading". | | checks | List of {id, rule, severity, files} | [] | Review checks the conventions reviewer enforces; files is an optional glob. Edited in the file, validated by scripts/doctor.py. | | extra_stages | List of {id, label, after, run, done_when, gate} | [] | The team's own /next stages. after names a built-in stage other than pull_request, or an earlier extra stage; run is a slash command or an instruction; done_when is the yes/no question that marks it done; gate: true stops for you after it. label is at most 12 characters and shows on the progress bar. Edited in the file. | | stage_checks | Object of stage name to a list of {id, prompt, on_fail} | {} | Yes/no prompts a /next stage must pass before it is marked done. Stages: start, plan, implement, test, review, pull_request. on_fail is fix (default, keep working the stage) or stop (blocker). Edited in the file. |

Validation requires a tracker when qa.evidence is work-item. Both bug-hunt and conventions remain in the reviewer list.

The clean, ddd-clean and modular-monolith profiles share Domain, Application, Infrastructure, API and Tests slices. Their adapters define different review rules. The vertical profile uses Slice, Persistence, Integration, Endpoint and Tests. See Adapters for supported tools and extension points.

dotnet-claude-kit

Setup recommends the companion plugin when your answers need its skills, and asks before installing it. These mappings come from scripts/kit_profile.py:

| Answer | dotnet-claude-kit skills it needs | |---|---| | architecture: clean | clean-architecture | | architecture: ddd-clean | clean-architecture, ddd | | architecture: vertical | vertical-slice | | testing.tdd: strict | tdd | | stack.data: ef-core | ef-core, migration-workflow | | stack.api: minimal-api | minimal-api, openapi, api-versioning | | stack.messaging: masstransit | messaging | | stack.messaging: wolverine | messaging | | stack.errors: result | error-handling | | stack.local_run: aspire | aspire | | reviewers: kit | code-review, 80-20-review, de-sloppify, verification-loop | | reviewers: security-scan | security-scan | | reviewers: convention-learner | convention-learner | | reviewers: code-review-workflow | code-review-workflow (also needs a Roslyn MCP server) |

The workflow kit also runs without the companion. Built-in adapters still guide the pages; unavailable companion reviewers are recorded as skipped. The code-review-workflow reviewer also requires a Roslyn MCP server.

Jev

Jev is TypeSafe's System One model: a fast, calibrated judge that returns probabilities, never text. With optional.jev true the kit uses it wherever a skill would otherwise decide on gut feel, and every call is skipped, never failed, when it is absent. Setup detects a TYPESAFE_API_KEY or a jev MCP server. Register the MCP at user scope so it loads in every project:

claude mcp add -s user jev -e TYPESAFE_API_KEY=<your key> -- npx -y @jkudish/jev-mcp

Add your own stage checks too. Each is a yes/no question a /next stage must answer yes to before it is marked done, judged on that stage's evidence. Jev scores them when enabled, and Claude answers them otherwise:

"stage_checks": {
  "implement": [{"id": "migration-reviewed", "prompt": "Does every new EF Core migration have a matching Down method?"}],
  "test": [{"id": "e2e-ran", "prompt": "Does the test output show the Playwright suite ran and passed?", "on_fail": "stop"}]
}

Add your own stages to the pipeline. /next runs each after the stage it names, and the progress bar gets a segment for it:

"extra_stages": [
  {"id": "security", "label": "Security", "after": "implement",
   "run": "/dotnet-claude-kit:security-scan",
   "done_when": "Did the scan report no high or critical findings?"}
]

Add your own review checks to the profile; the conventions reviewer enforces them on every sweep, and with Jev scripts/jev_checks.py scores every added hunk against them first:

"checks": [
  {"id": "cancellation", "rule": "Every new async method that performs I/O accepts and forwards a CancellationToken", "severity": "high", "files": "**/*.cs"},
  {"id": "clock", "rule": "Use the injected IClock, never DateTime.Now", "severity": "medium", "files": "src/**/*.cs"}
]

| Stage | What Jev does | |---|---| | start, plan | Screens ticket text and linked items for injected instructions; ranks linked items so only the relevant ones are read. | | plan | Settles open questions from the research facts, or preselects the recommended option and names the fact that would decide it. | | implement | Classifies open sweep findings as fixable in scope or scope-changing. | | sweep | Scores profile checks and the CLAUDE.md rubric per hunk; deduplicates findings; gates the verdict's claims against the diff and test output. | | test | Buckets failing tests as regression, refactor fallout, flaky or environment before fixing. | | review | Verifies Plan versus delivered rows, QA Pass evidence and Verdict tiles. | | next | Classifies red CI jobs; screens, classifies and ranks review threads. |

Diff hunks, claims, test output and ticket text are sent to api.typesafe.ai when a touchpoint runs; files matching the secret patterns never are. Set optional.jev to false when policy forbids it. docs/jev.md has the call shapes, the skipped wording and the checks reference.

Contributing

| Path | Contents | |---|---| | .claude-plugin/ | Plugin and marketplace manifests. | | commands/setup.md | Setup command instructions. | | skills/ | Six skills, the reviewer sweep and their supporting files. | | adapters/ | Tracker, source control, architecture, QA and stack instructions. | | assets/ | Shared page shell. | | scripts/ | Profile, setup, checks, rendering and the Jev checks scorer. | | docs/ | Usage guides, writing rules, the Jev reference and screenshots. | | tests/ | Fixtures and automated checks. |

Run the tests and plugin validation from the repository root before opening a PR:

python -m pytest
claude plugin validate .

Keep examples generic. Hygiene tests check for private identifiers and em dashes. Follow the writing rules for plan and review content.

License

MIT. See LICENSE.

Author: Chris Ainsley
