cc-kit

Visual components for Claude Code mods: sparklines, gauges, KPI tiles, heatmaps, and live agent observability (tool timeline, token burn, subagent tree, context map). They draw in the terminal and the desktop app.

Early access. Claude Code's mod API is marked "EARLY ACCESS: this surface may change between releases without notice." cc-kit is tested against Claude Code 2.1.288. Expect breakage on newer releases until CI against the latest release lands.

Status

Phase 0: a kitchen sink. Every candidate component is on one pane, so you can see what's possible and judge each one. The registry and /kit add come next. See the design spec.

The demo, screenshot by screenshot

Every screenshot is the kitchen-sink pane (/kit sink <group>) captured from a real Claude Code 2.1.288 session. Each component carries a tag:

• [v1] means it is planned for the first release.
• [sink only] means it is a mock, drawn so it can be judged before anyone builds it properly.
• ● live means it is drawing your session's real data; ○ mock means it is showing sample data until there is something real to show.

The header row counts the components. The bracketed buttons are tabs, one per group; each one has a hotkey (0–6).

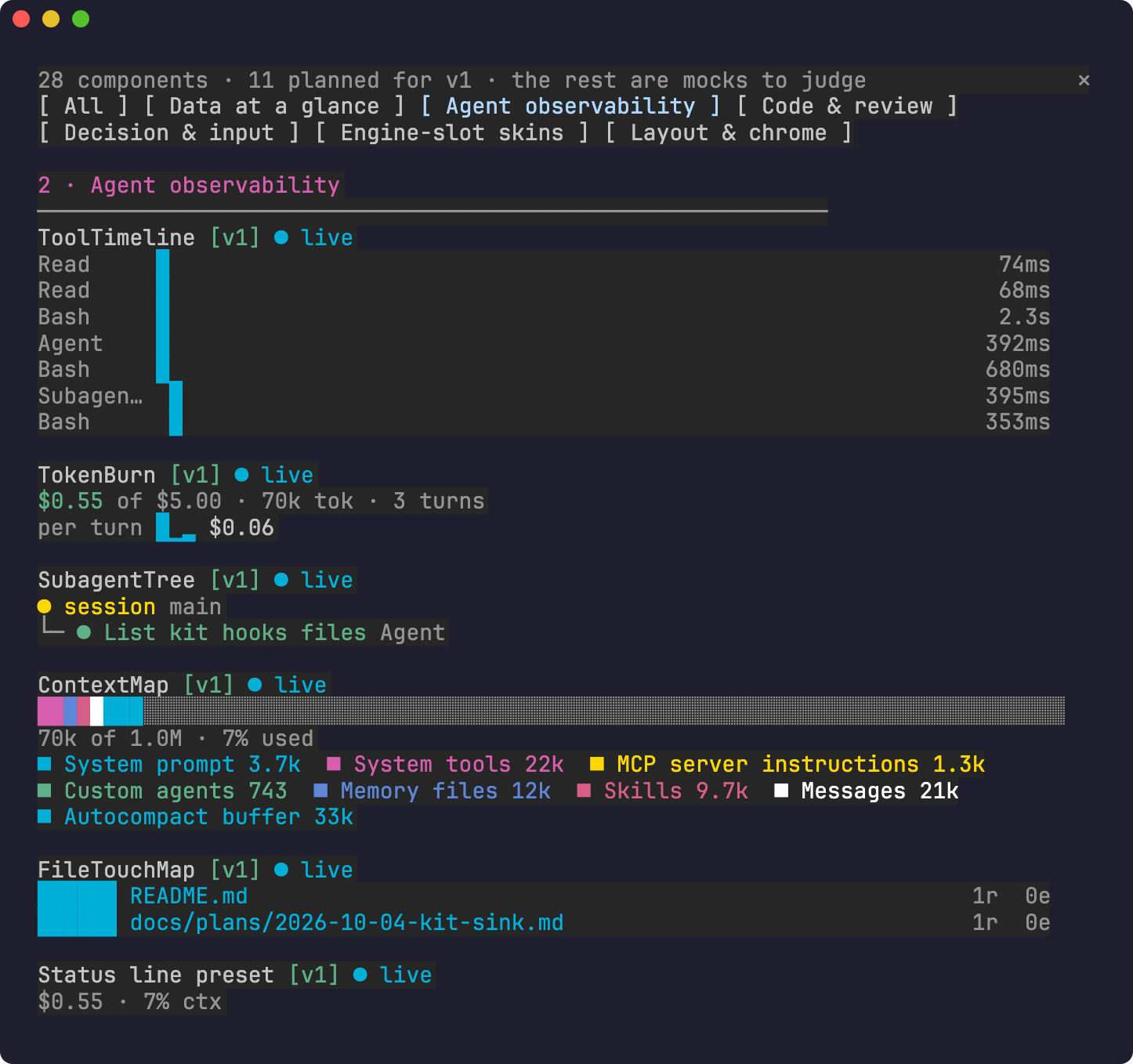

1 · Agent observability (/kit sink observe)

These components can only exist as a mod, because only a mod sees the agent's tool calls as they happen. Everything in this shot is live.

| Component | What it shows | |---|---| | ToolTimeline | One row per tool call, laid out on a shared time axis, Gantt-style. Calls that overlap are stacked; the bar length is the duration (shown on the right). A running call is yellow ▸; a failed one is red. | | TokenBurn | Session spend against a budget ($0.55 of $5.00), tokens and turn count. The sparkline shows the cost of each turn, so a costly turn stands out. The headline turns yellow, then red, as you approach the budget. | | SubagentTree | The live tree of subagents this session spawned: ● yellow while running, green when done, red when failed. | | ContextMap | What fills the context window, as one stacked bar (system prompt, tools, memory, skills, messages, autocompact buffer) plus a legend. Free space is the grey remainder. Data comes from $.session.usage. | | FileTouchMap | The files the agent read (r) and edited (e) this session, hottest first. Edits weigh more than reads; paths are relative to the repo. | | Status line preset | The same numbers squeezed into one line for $.ui.status: $0.55 · 7% ctx. |

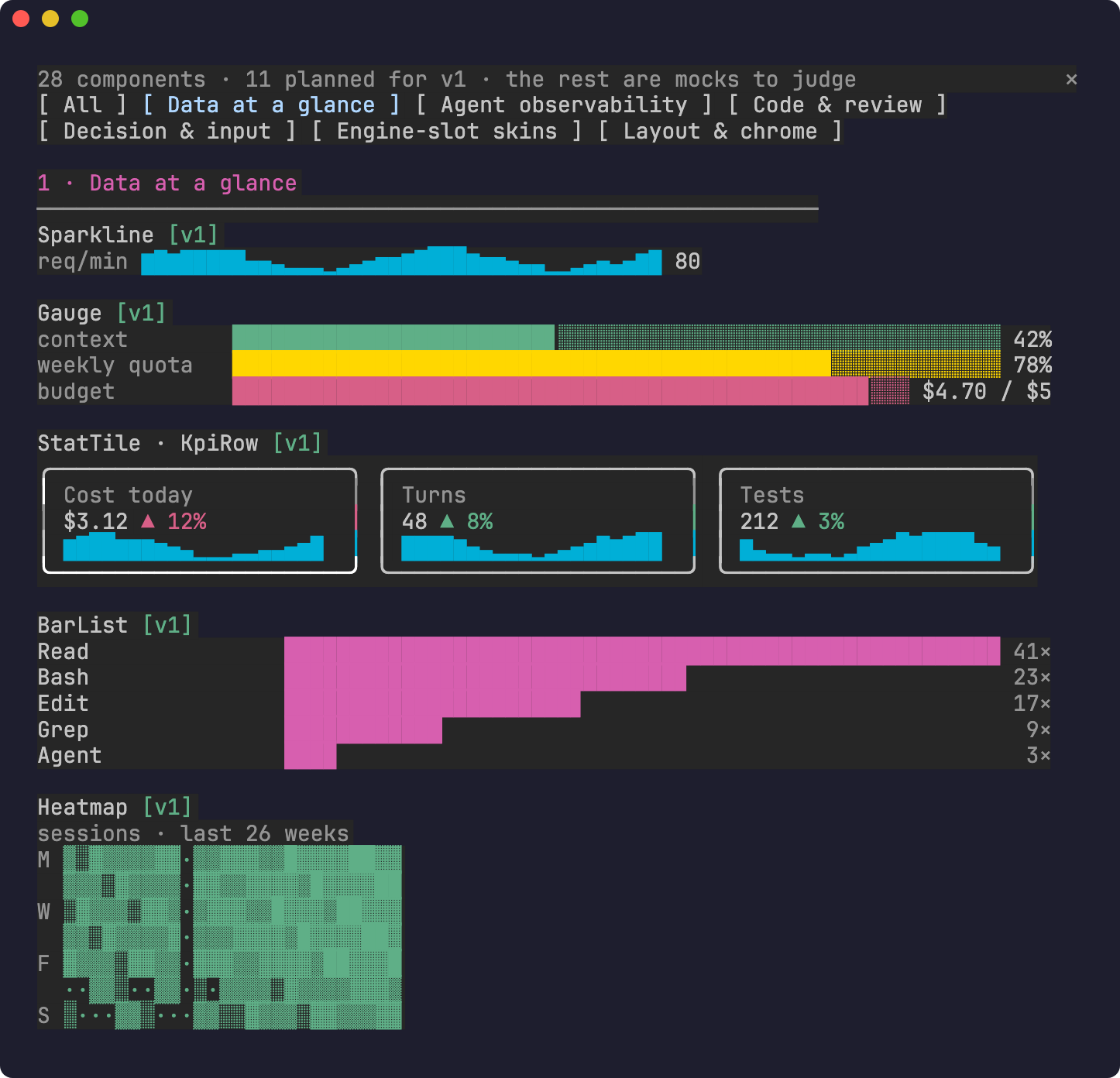

2 · Data at a glance (/kit sink data)

General-purpose charts, drawn with text glyphs so they work in any terminal; the desktop app draws the same tree. These are the building blocks the observability components are made of.

| Component | What it shows | |---|---| | Sparkline | A trend in one line of ▁▂▃▄▅▆▇█, with an optional label and last value. It resamples to whatever width it is given. | | Gauge | Label, bar, value. Color follows thresholds (green < 70% ≤ yellow < 90% ≤ red), with eighth-cell precision. The right side can be a custom detail ($4.70 / $5). | | StatTile · KpiRow | Bordered KPI cards: label, value, a ▲/▼ delta and a trend sparkline. Each delta knows whether "up" is good (Turns) or bad (Cost), and colors itself to match. KpiRow wraps the tiles to fit the pane width. | | BarList | Ranked horizontal bars with right-aligned values, for top tools, top files or top errors. | | Heatmap | A GitHub-style activity grid: 7 rows (days) × N weeks, intensity drawn as ·░▒▓█. |

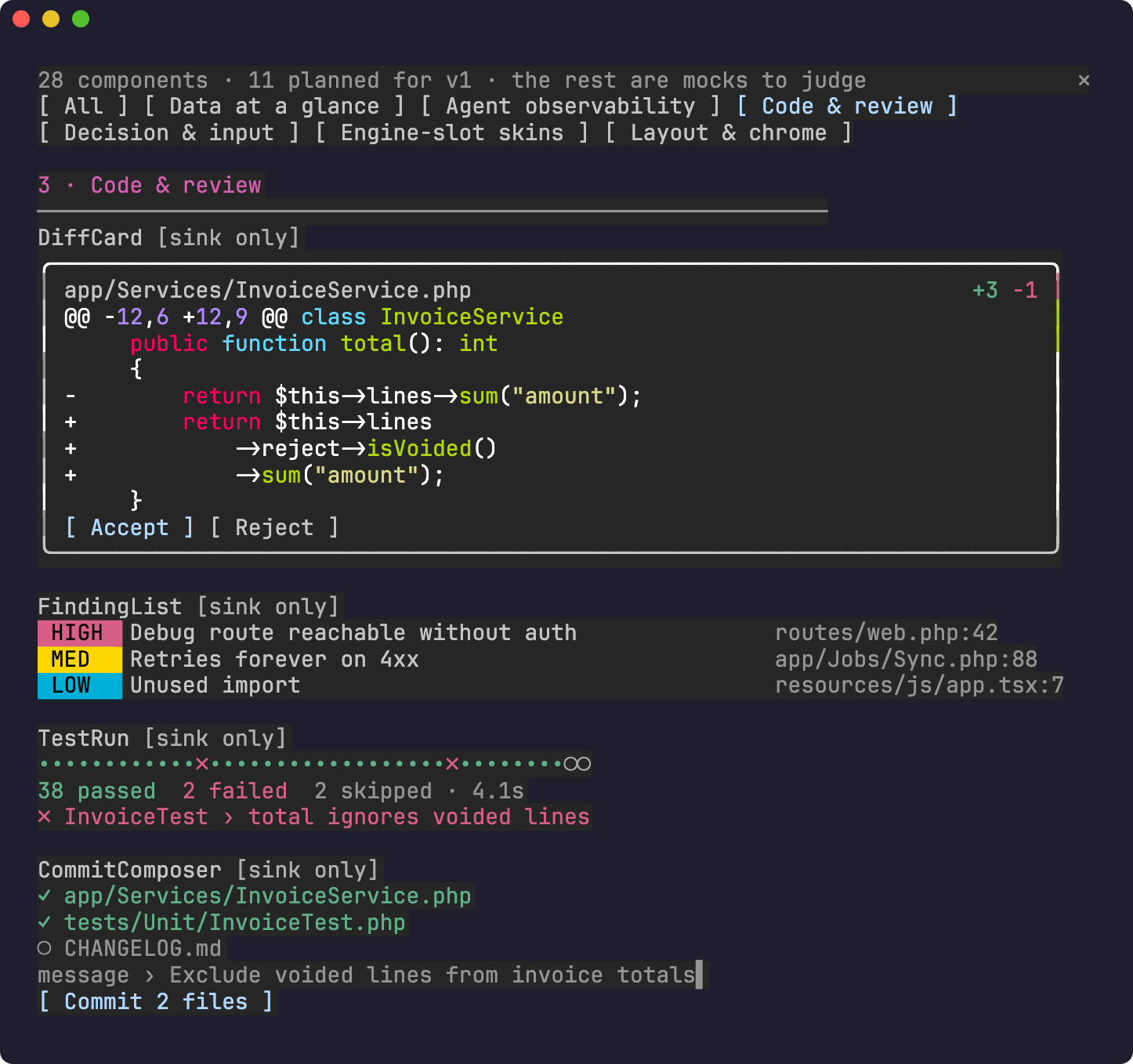

3 · Code & review (/kit sink code) · mocks

| Component | What it shows | |---|---| | DiffCard | A file header with +3 −1, the diff syntax-highlighted by Claude Code's own Code element, and Accept / Reject buttons. | | FindingList | Review findings with HIGH / MED / LOW severity badges and a file:line for each. | | TestRun | A dot per test (green pass, red × fail, grey ○ skipped), a summary line, and the first failure. | | CommitComposer | Staged files (✓) versus unstaged ones (○), a draft message, and a Commit button. |

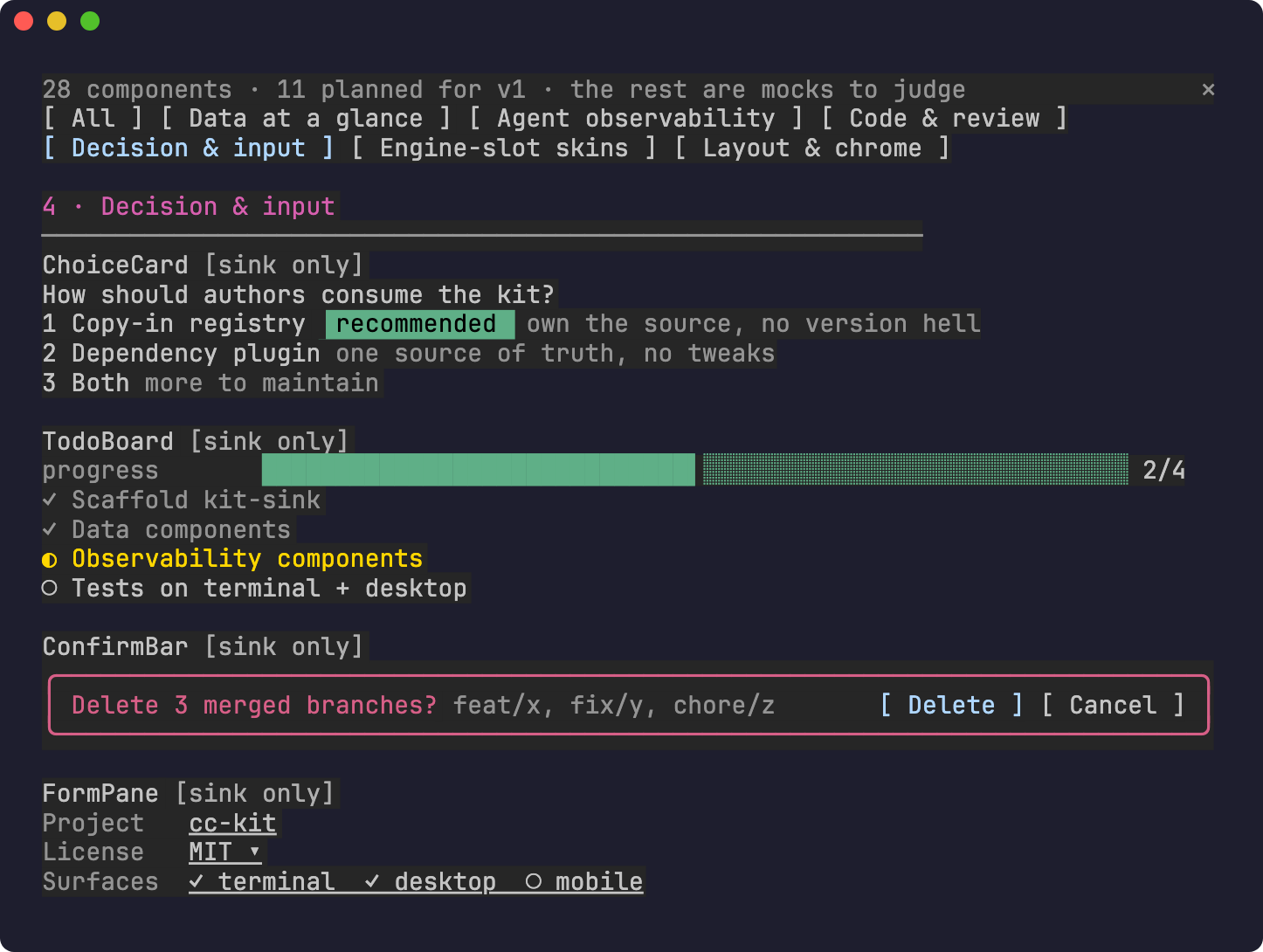

4 · Decision & input (/kit sink decide) · mocks

| Component | What it shows | |---|---| | ChoiceCard | A question with numbered options, a recommended badge and a one-line trade-off for each, as an alternative to a wall of chat text. | | TodoBoard | A progress gauge over a checklist: done ✓ (dimmed), active ◐ (yellow), pending ○. | | ConfirmBar | A red-bordered confirmation for a destructive action, listing exactly what it will touch, with Delete / Cancel buttons. | | FormPane | Labeled fields: text, a select (MIT ▾) and multi-choice. |

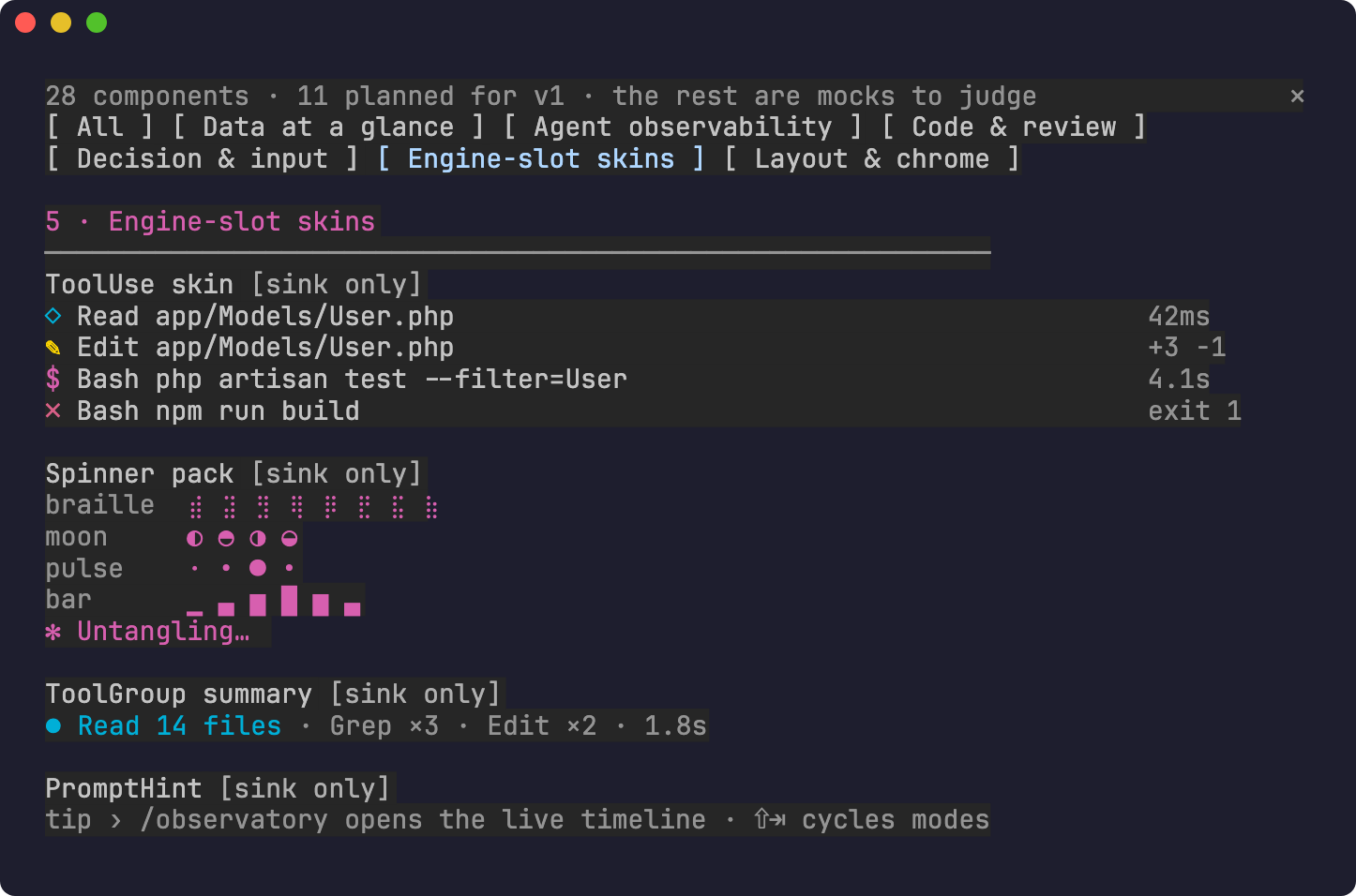

5 · Engine-slot skins (/kit sink skins) · mocks

Claude Code lets a mod redraw its built-in rows. These mocks show what a theme pack could do.

| Component | What it shows | |---|---| | ToolUse skin | Compact one-line tool rows: an icon per tool, the argument, and the duration or result (+3 −1, exit 1 in red). | | Spinner pack | Alternative spinner frame sets (braille, moon, pulse, bar) and a themed verb (✻ Untangling…). | | ToolGroup summary | A burst of calls collapsed into one row: Read 14 files · Grep ×3 · Edit ×2 · 1.8s. | | PromptHint | A contextual tip line under the prompt. |

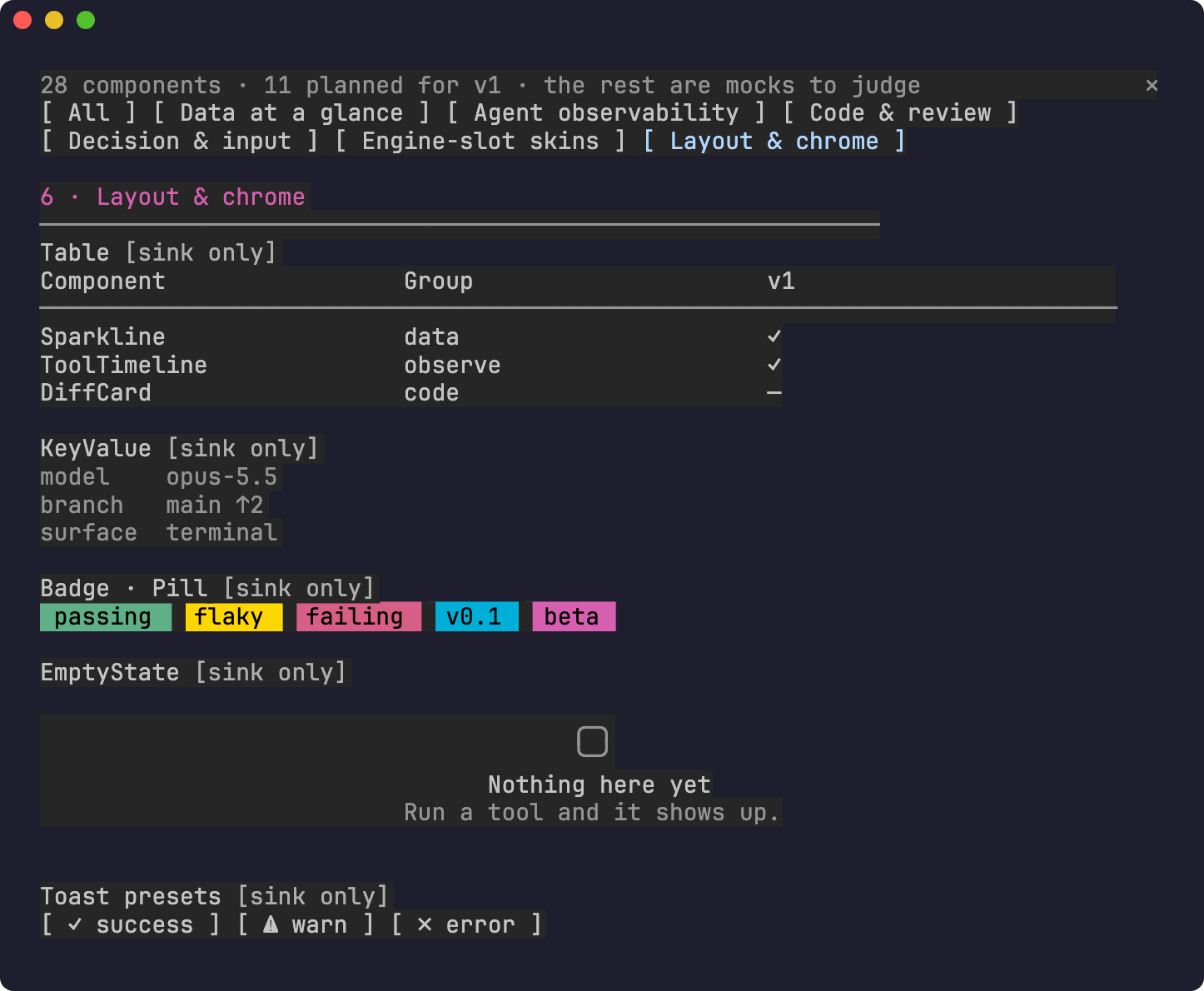

6 · Layout & chrome (/kit sink layout) · mocks

| Component | What it shows | |---|---| | Table | Header, rule and rows, with columns sized to the pane width. | | KeyValue | Aligned label/value pairs. | | Badge · Pill | Colored status tags using the kit's semantic tones (ok, warn, bad, info, accent). | | EmptyState | What a component shows before it has any data. | | Toast presets | Buttons that fire $.ui.toast in success / warn / error formats. |

Try the kitchen sink

claude --plugin-dir /path/to/cc-kit/mods/kit-sink

Then, inside Claude Code:

/kit sink            # all groups
/kit sink observe    # or: data, code, decide, skins, layout

The pane has a tab per group. Components tagged [v1] are planned for the first release; [sink only] ones are mocks shown to gather feedback. The observability components switch from ○ mock to ● live as soon as your session runs a tool.

Develop

claude plugin validate mods/kit-sink
claude plugin test mods/kit-sink

License

MIT
